Flexible Tubular Metal Products

Since 1968 Hyspan has been providing high quality, application specific, engineered products for the HVAC industry.

High and Low Pressure Externally and Internally Pressurized Expansion Joints; Pack Type and High Temperature Exhaust Bellows

Hyspan Barco Ball Joints provide a means of absorbing pipe movement by affording a flex and/or rotational pivot point






Series 1500 ‐ Laminated Bellows Hyspan Expansion Joints

  • Series 1500 Laminated Bellows Expansion Joints are designed for installations where the principal movement is axial.
  • Standard designs are 2” through 14” NPS with 2” or 3” axial compression.
  • The laminated construction results in the optimum cycle life and lowest possible spring constant.
  • 5 Year Full Replacement Warranty

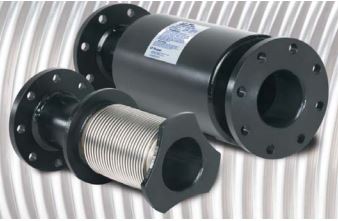

Series 3500 – Exp. Joints

  • Externally Pressurized
  • 2” through 24”
  • 150 & 300 PSIG @ 500°F
  • Axial Travel of 4”, 6” & 8” for
  • Single Configurations
  • Axial Travel of 8”, 12” & 16” for
  • Dual Anchor Configurations






Series 8500 – Exp. Compensator

  • Externally Pressurized
  • 3/4” through 4”
  • 200 & 500 PSIG @ 500°F
  • Axial Compression of 2”or 3”
  • Service conditions are 200 psig to 500°F
  • Steel pipe ends are threaded, welded, grooved or flanged
  • Copper tube ends are male or female sweat connections
  • 3 Year Full Replacement Warranty






Hyspan Barco Ball Joint

  • Several Styles Available
  • 1/2” through 30” Nominal Pipe Size
  • Unique disassembly capability for inspection and seal replacement
  • Standard and Custom Configurations
  • FM Approved Standard and Type N
