For over 50 years Airtite has been designing, installing and manufacturing aluminum radiant ceiling panels.
Innovations to the original product include the addition of a linear bar diffuser to enhance heating performance and provide perimeter glass air washing.

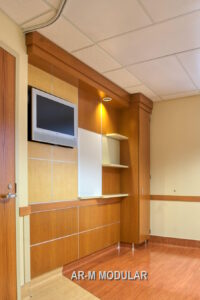

AR-M: Modular (Panel A)
- The .040” formed AR-M aluminum panel is available in 24″ x 24″ and 24″ x 48″ standard sizes, with a 1” batt of insulation.
- The lightweight design has six-pass sinuous coils with a metallurgical bond/soldered to the back of the aluminum panel, providing optimal heat transfer.
- These panels can be silk screened to match adjacent acoustical ceiling tiles. Custom sizes can be made on request.

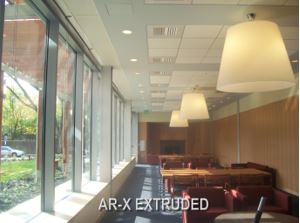

AR-X: Extruded Radiant Panel
- Panels are constructed with 4″, 5″ or 6″ single-tube and 6″ double-tube, with 4″ single vertical and 4″ single bullnose sections.
- Panels can be assembled with various extrusions in panel widths from 4 to 48″-plus, and lengths up to 16′.
- Panels are designed to be installed wall-to-wall or in modules.
AR-D Integral Diffuser Panel
- Offers a narrower profile which allows for longer continuous sections.
- Integral Linear Diffuser Alleviates need for separate linear diffuser installation
- Increases delivered air temperatures up to 35% heating capacity
- 12” to 60” long integral pattern controllers
